ColibryNPU Evalboard

Unlock embedded AI

Start now creating the next generation of devices

ColibryNPU EvalBoard

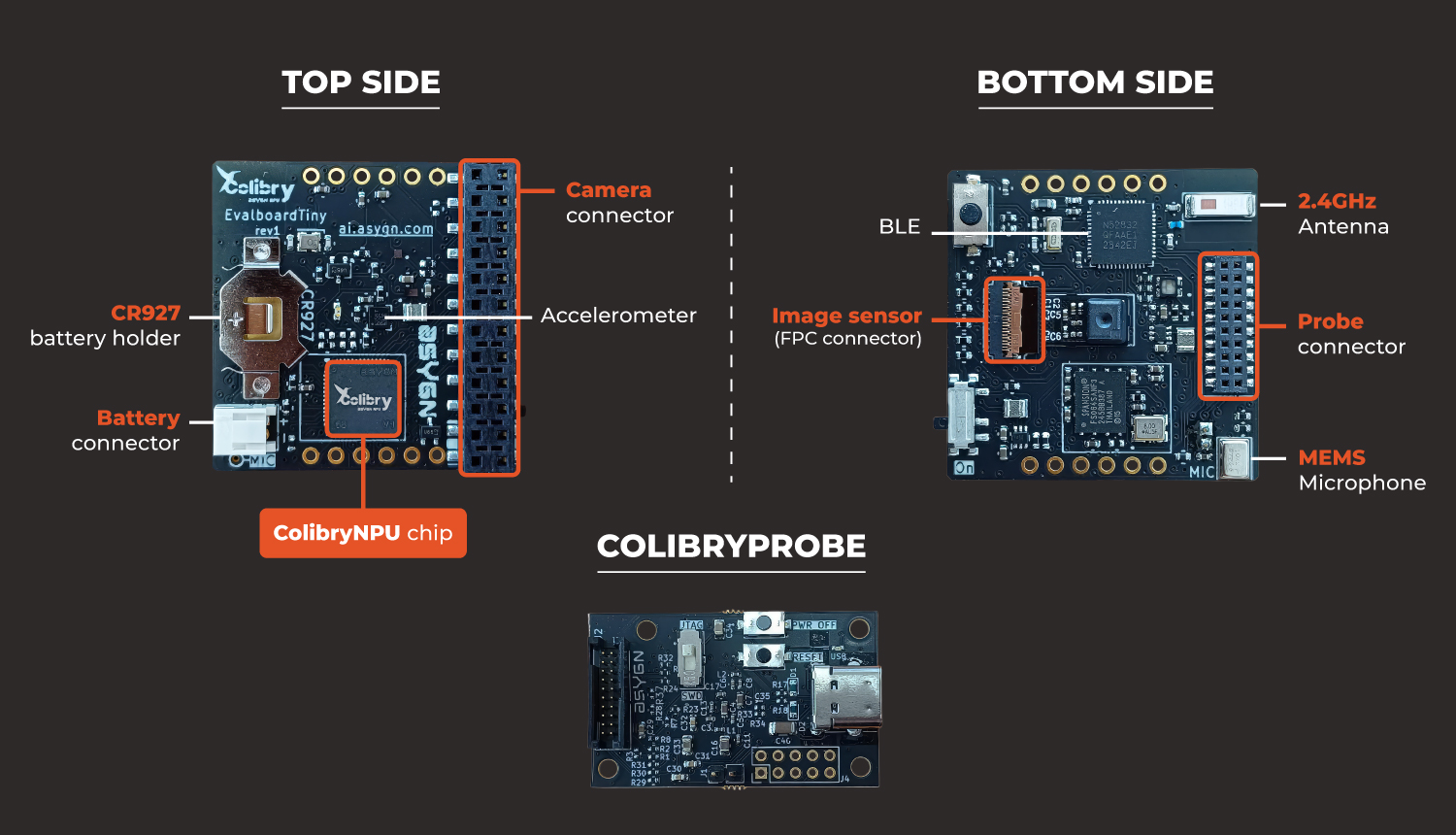

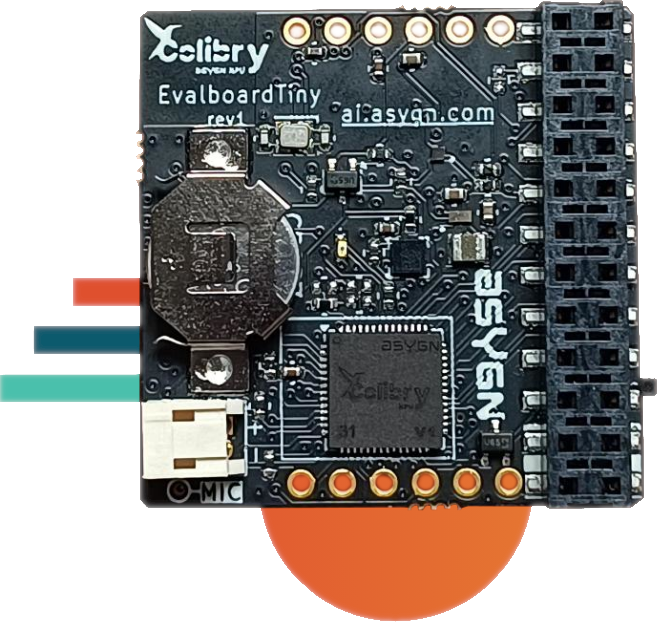

The ColibryNPU EvalBoardTiny is the fastest way to start building ultra-low-power AI applications. Compact, ready to use, and featuring integrated vision, audio, motion sensing and Bluetooth® connectivity, it lets developers focus on creating intelligent battery-powered devices instead of designing hardware. From your first AI model to a working prototype, everything you need is already on board.

Specifications

FFT & ISP

Hardware accelerator

9.6 GOPs

Compute power

0 MHz

Max frequency

0 -bit

RISC-V CPU

0 kB

CPU SRAM Memory

0 kB

NNPA SRAM Memory

Sensors
Image	QVA ultra-low power image sensor
Motion	3-axis accelerometer
Sound	Digital Microphone

Input / Output

2xGPIOs / 2xJTAG

4x SPI slave

1x I2C

Interfaces
Image sensor	Parallel connector / FPC connector
User acces	External probe required

Power
Power supply	CR927 battery holder
Battery Connector	Yes

Hardware
Processor	32-bit RISC-V CPU / Neural Network Accelerator / FFT Accelerator / ISP Accelerator
External flash memory	8Mb
Communication	Bluetooth Low Energy (Nordic nRF52832)
Programmer	External probe required
