Electronics for inertial sensors​

Products – AS40XX Series

AS4001

Suited to 1-DOF accels, capacitive readout, resonance frequency tracking, etc.

ASYGN - Products - AS4001 - Inertial Sensors

2 DACs

1 Charge Amplifier + ADC

1 Temperature Sensor

SPI/I2C

RISC V

AS4002

Suited to 1-DOF gyros, 2-DOF
  or differential accels, etc.
ASYGN - Products - AS4002 - Inertial Sensors

5 DACs

2 Charge Amplifiers + ADC

1 Temperature Sensor

SPI/I2C

RISC V



AS40xx

Build on the AS40xx features and get a specific design suited to your specifications.

ASYGN - Products - AS40xx - Custom Inertial Sensors

ADCs

DACs

Instrumentation Amplifiers

Charge Amplifiers

Temperature Sensors

High voltage generators

PLLs

Signal Processing IPs

RISC V

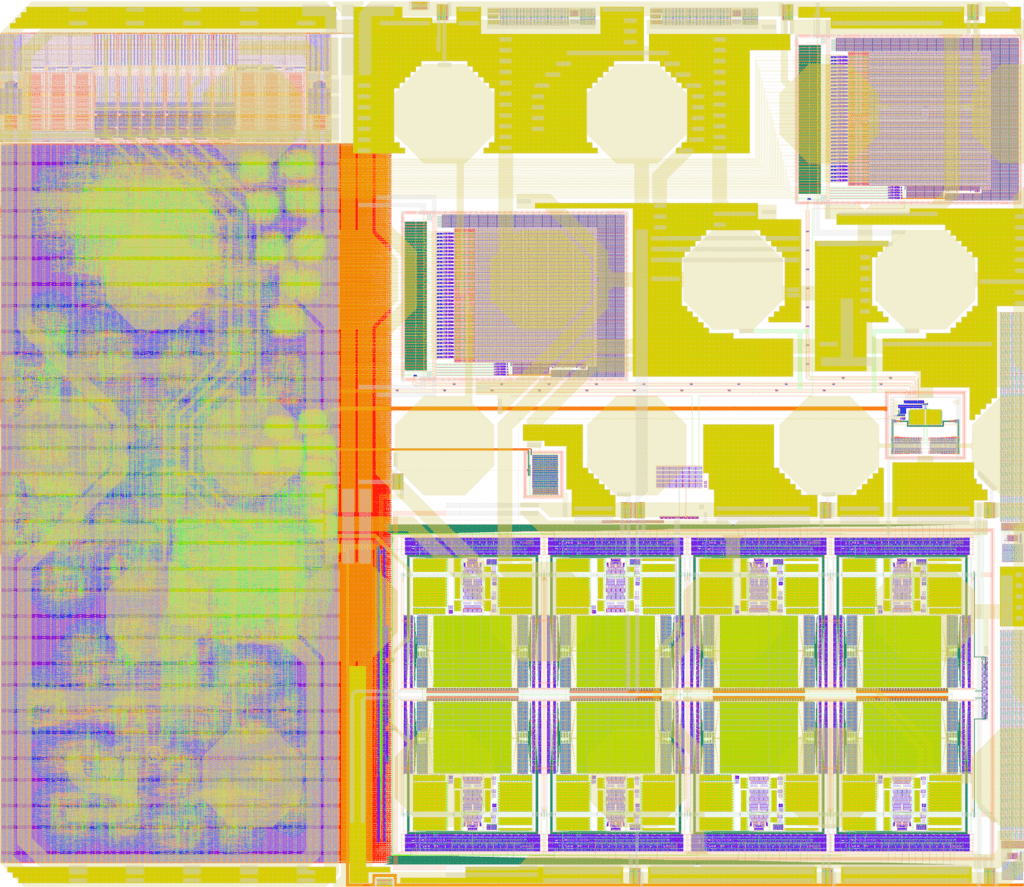

ASIC Design Services

Mixed-signal ASIC development based on specifications, from test chip to production volumes, focused on high-performance and low-power.

ASYGN covers the complete specification to delivery, including analog and digital design and verification, foundry interface, package design, test board and software design, test programs and wafer-level testing with partners.

In addition, ASYGN performs inertial system testing, failure analysis and results analysis with the customer.

Custom ASIC design fitting your
sensor specifications

High-precision, low-noise,
and low power features​

Examples

Single-mass 3-axis accel

Biasing and readout of a high sensitivity accel with 40µG Bias Instability.

Differential Resonant Quartz accel

Biasing and readout of a high stability accel with 3µG Bias Instability.

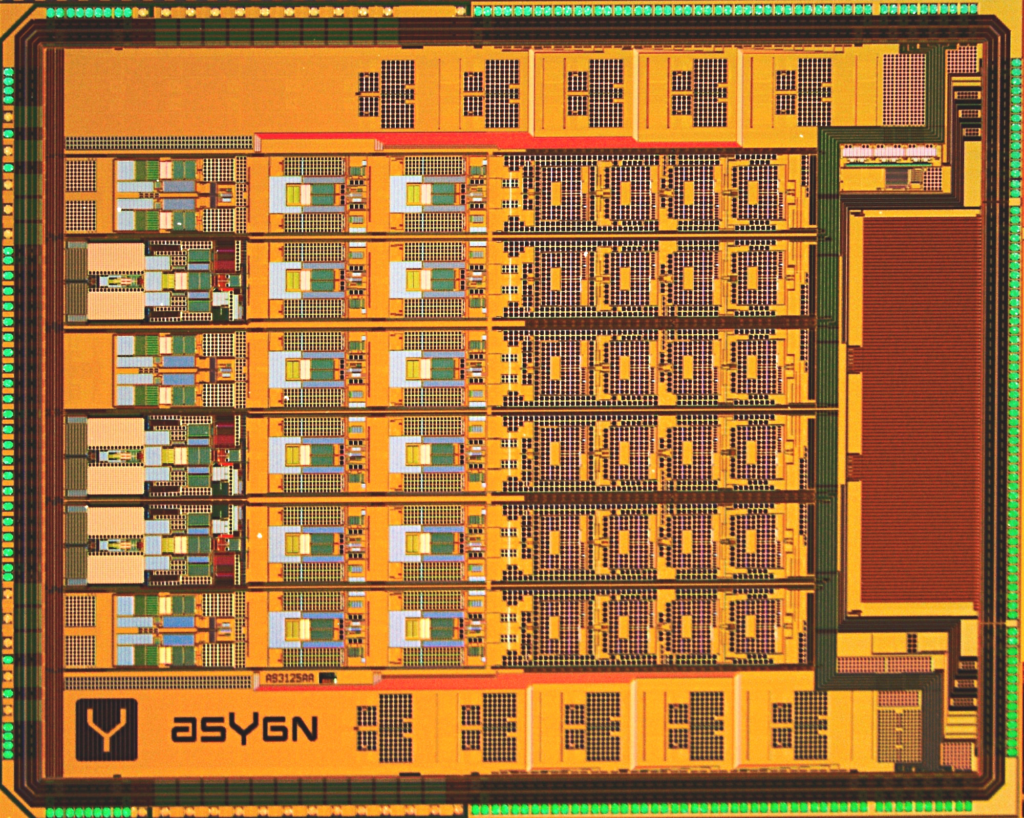

6DOF IMU

Readout and control of 3 accels and 3 gyros in a very low
power consumption footprint.

System Design Services

Full mixed-signal system development based on specifications, from prototype to series.

AS3125-SDM | Sensor Development Module | Asygn
  • System modeling
  • Electronics design
  • Packaging
  • Board Design
  • Embedded Firmware
  • Application Software

Examples

9DOF IMU

Readout and control of of 3 accels, 3 gyros and 3 magnetometers using piezo-resistive transduction.

Vibration sensor

10kHz+ bandwidth, low-noise, 100G range, small form factor PCB

AS3125-SDK2

Versatile MEMS system prototyping platform
